X-25 T6S Power US

Power cable

Length	Color	SKU
100 cm \| 3.3 ft.	Cobra	21358
100 cm \| 3.3 ft.	Black	21390
150 cm \| 4.9 ft.	Cobra	21360
150 cm \| 4.9 ft.	Black	21393
200 cm \| 6.6 ft.	Cobra	21362
200 cm \| 6.6 ft.	Black	21396
300 cm \| 9.6 ft.	Cobra	21365
300 cm \| 9.6 ft.	Black	21399
500 cm \| 16.4 ft.	Cobra	21372
500 cm \| 16.4 ft.	Black	21402
Quote for your individually customized cable: Preferred length / sleeve design / connector configuration
Packaging unit: 1 piece

Fully shielded power cables are crucial for high quality audio and video systems. VIABLUE™ power cables block any distortion and thus provide crystal clear and high-purity signals. Braided and aluminum foil shields surround 3 cores with silver plated OFC copper strands and thus block interference 100%.

A specifically designed ultra soft sheath renders VIABLUE™ X-Cables extremely flexible and easy to bend. A must-have for any audio or video system seeking clean and perfectly rendered sound patterns.

VIABLUE™ X-Series for a maximum performance

100% shielding due to braided and aluminum foil shields
Silver plated OFC copper strands (brown, blue)
Tin plated OFC copper strands (yellow-green)
Maximum hold through double-screwed strain relief

Customized with VIABLUE™ T6s AC power connectors

NEMA 5-15P US plug
IEC C15 world plug
24 carat real gold-plated contacts
VIABLUE™ Ultragrip coating, scratch-resistant, satin finish
Massive housing - flame-retardant and break-proof
For an optimal contact pressure

All available types: VIABLUE™ power plugs

Additional features:

VIABLUE™ Cobra braided cable sleeve
VIABLUE™ ferrite filter 14 - for a distortion-free current transmission

OFC Copper

OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.

Silvered

Silvered OFC strands guarantee a brilliant and precise rendition of high frequencies.

VIABLUE™ Ferrite

is a ceramic material of iron oxide and additional metallic elements. All are electrically non-conductive, meaning that they are very good insulators.

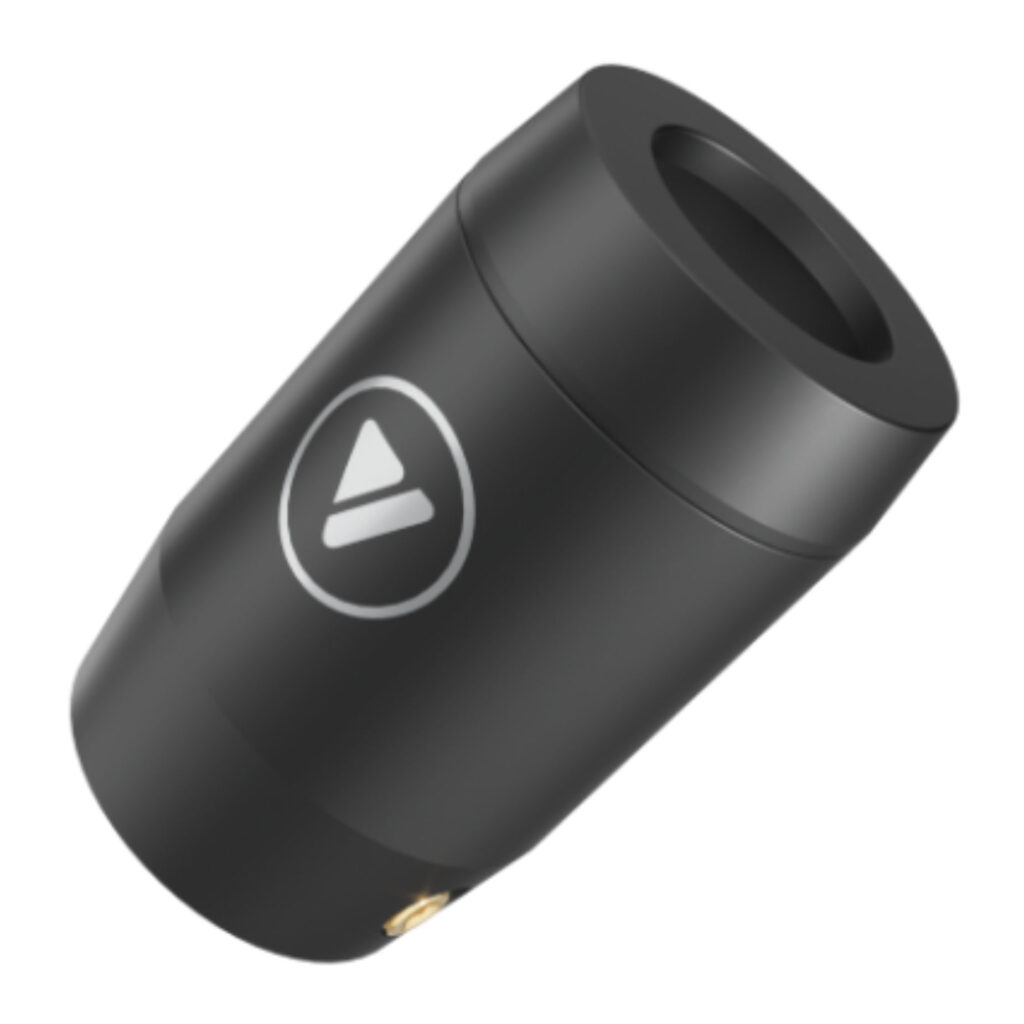

VIABLUE™ Ferritfilter

a ferrite core, built in a metal shell suppresses the amount of high frequency electromagnetic interference (EMI) noise found in electronic circuits.

TECHNICAL DETAILS

Outer Ø X-25: 12.5 mm
Outer Ø X-40: 14.0 mm
Outer Ø X-60: 16.5 mm
Conductor cross section X-25: 3x 2.5 mm²
Conductor cross section X-40: 3x 4.0 mm²
Conductor cross section X-60: 3x 6.0 mm²
Isolation resistance: > 20 MOhm x KM
Test voltage: 3000 Volts
