Sleeve Flag

Size	SKU
Small	44289
Medium	44335
Big	44365
Packing unit: per meter \| per 3.3 ft.

Size	SKU
Small ¹	44419
Medium ¹	44455
Big ²	44485

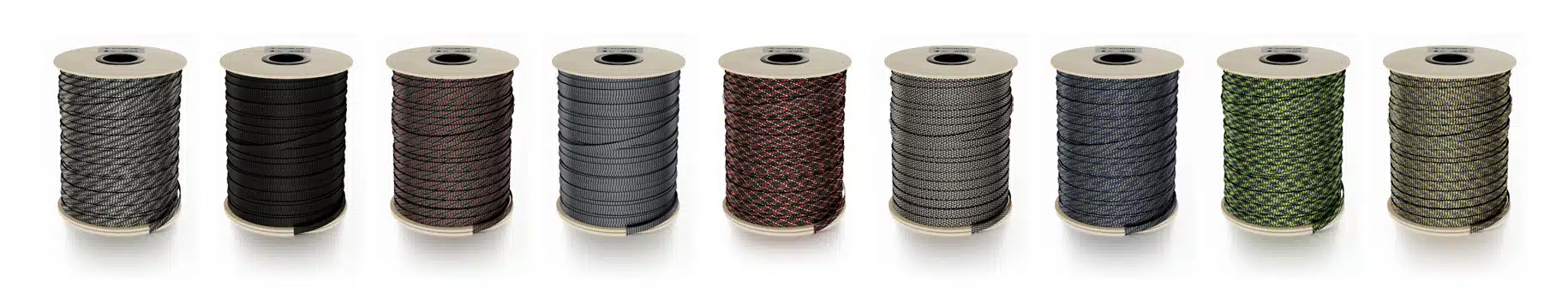

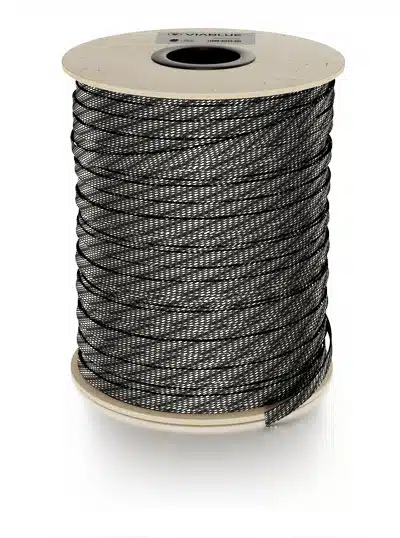

*¹ Unit: 250 m \| 820 ft.* spool**
*² Unit: 200 m \| 656 ft.* spool**

Design cable protection

Support for high-quality cables against wear and attrition
Protection against kinking and UV-light
Design-upgrade and professional labeling of cables
Opaque due to a fine-mesh structure

Available in 3 sizes

SMALL for cable Ø 2 to 6 mm
MEDIUM for cable Ø 5 to 13 mm
BIG for cable Ø 13 to 26 mm

Assembly instructions:

Slide on cables before assembly of plugs
Use electrical tape or heat shrinks for fixing the braided sleeves

We recommend:

VIABLUE™ Heat Shrinks

TECHNICAL DETAILS

The greater the diameter of a cable, the more length of sleeve is required, since the braided hose is shortened by the scissor-like expansion. The following table shows some examples of length factors:

Required length of SMALL sleeve for cable Ø 2 - 6 mm
Cable Ø	2 mm	3 mm	3.7 mm	4 mm	6 mm
Cable Model			EPC-2	SC-1
Length (factor)	1.00	1.05	1.08	1.10	1.40

Required length of MEDIUM sleeve for cable Ø 5 - 13 mm
Cable Ø	5 mm	8 mm	10 mm	12 mm	13 mm
Cable Model		NF-S1	SC-2	SC-4	X-25
Length (factor)	1.00	1.10	1.18	1.35	1.60

Required length of BIG sleeve for cable Ø 13 - 26 mm
Cable Ø	13 mm	14 mm	16 mm	20 mm	26 mm
Cable Model	X-25	X-40	NF-S6		SC-6
Length (factor)	1.05	1.08	1.10	1.30	1.80
